- Consistent Accuracy for Extra Thick or Thin Materials
|
- Combined Multi-function in One
|

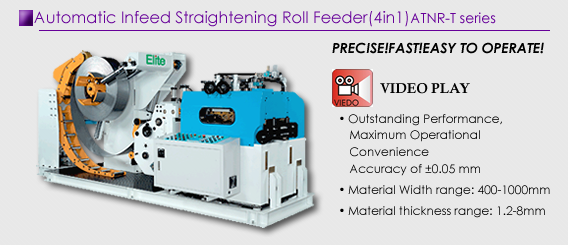

- Exclusive Automatic Infeed Design
|
|
- Parallelism Between Rollers 0.005mm.
-
The rollers are manufactured from high quality steel (SUJ2) and heat treated to release stress. Roller surfaces are hard chrome plated for maximum wear resistance.
- Independent control box for operational convenience.
- Employs AC servomotor drive for fast motion and increased efficiency.
- The computer control with closed-loop feedback assures accuracy of ±0.05mm.
- Multi-step manual length input allows convenient material feed to the die and accurate positioning.
- Loosening angle is quickly set by simply meeting the cam signal from the press and making material thickness adjustment.
- Feed length can be conveniently set on the control panel.
|
