• Parallelizing Device on Two Rollers
  • Simultaneous Pressure Adjustment on Feeder Rollers
  • Specially-designed tension release mechanism
  • Automatic Guide Infeed
  1. Parallelism Between Rollers 0.005mm.
  2. The rollers are manufactured from high quality steel (SUJ2) and heat treated to release stress. Roller surfaces are hard chrome plated for maximum wear resistance.
  3. Independent control box for operational convenience.
  4. Employs AC servomotor drive for fast motion and increased efficiency.
  5. The computer control with closed-loop feedback assures accuracy of ±0.05mm.
  6. Multi-step manual length input allows convenient material feed to the die and accurate positioning.
  7. Loosening angle is quickly set by simply meeting the cam signal from the press and making material thickness adjustment.
  8. Feed length can be conveniently set on the control panel.

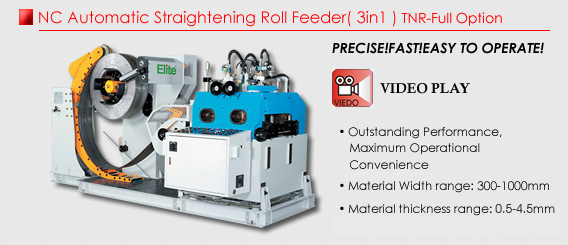

MODELS
TNR - 300
TNR - 400
TNR - 500
TNR - 600
TNR - 800
TNR - 1000
Material thickness range
0.5 ~ 4.5 mm
Material Width range
50 ~ 300 mm
50 ~ 400 mm
50 ~ 500 mm
50 ~ 600 mm
50 ~ 800 mm
100 ~ 1000 mm
Feed roller
2 sets
Straightening roller numbers
Upper 5/ Lower 4
Outfeed speed
18 m / min
Material coil weight
4000 kg
5000 kg
6500 kg
7500 kg
Inside dia. of material coil
Ø 510 mm
Outside dia. of material coil
Ø 1200 mm
Feed servomotor
AC 3.5 KW
AC 5.0 KW
AC 7.0 KW
Uncoil motor
AC 1HP
AC 2HP
AC 3HP
Uncoil expansion
Hydraulically operated
Working air pressure
5 kgf / cm2
Power source required
AC 3 ph
Machine dimensions (LxWxH)
4100 x 2200 x 1700 mm
4100 x 2300 x 1700 mm
4100 x 2400 x 1700 mm
4100 x 2500 x 1700 mm
4100 x 2700 x 1700 mm
4100 x 2900 x 1700 mm
Machine weight
4050 kg
4150 kg
4850 kg
5350 kg
6050 kg
6950 kg
  • All specifications, dimensions and design are subject to change without prior notice.
