- Parallelizing Device on Two Rollers
|
- Simultaneous Pressure Adjustment on Feeder Rollers
|
- Specially-designed tension release mechanism
|
|

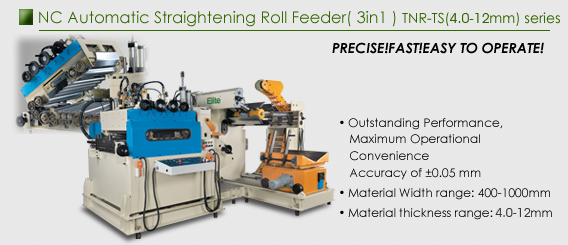

- Even when processing extra thick or thin materials, Elite feeders always provide extremely stable feeding performance and high accuracy positioning.
- For feeding materials of various widths and thicknesses, adjustment is conveniently made by simply changing the feeder to suit the die.
|
|
|
MODELS |
|
|
|
|
|
Material thickness range |
4.0 ~ 12 mm |
Material Width range |
50 ~ 400 mm |
50 ~ 500 mm |
100 ~ 600 mm |
100 ~ 800 mm |
100 ~ 1000 mm |
Feed roller |
2 sets |
Straightening roller numbers |
Upper 4 / Lower 3 |
Outfeed speed |
18 m / min |
Material coil weight |
7000 kg
|
9000 kg |
10000 kg |
Inside dia. of material coil |
Ø 508 mm |
Outside dia. of material coil |
Ø 1600 mm |
Feed servomotor |
AC 7.0 KW |
AC 11 KW |
Uncoil motor |
AC 2HP |
AC 3HP |
AC 5HP |
Uncoil expansion |
Hydraulically operated |
Working air pressure |
5 kgf / cm2 |
Power source required |
AC 3 ph |
Machine dimensions (LxWxH) |
4600 x 2350 x 1700 mm |
4600 x 2450 x 1700 mm |
4600 x 2550 x 1700 mm |
4600 x 2750 x 1700 mm |
4600 x 2950 x 1700 mm |
Machine weight |
4950 kg |
5250 kg |
5550 kg |
6150 kg |
6950 kg |
- All specifications, dimensions and design are subject to change without prior notice.
|
|
|
