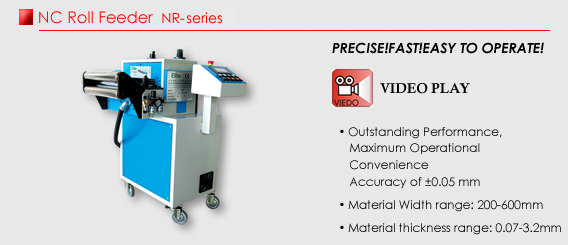

- Parallelizing Device on Two Rollers
|
|
- Simultaneous Pressure Adjustment on Feeder Rollers
|
|
- Parallelism accuracy between rollers 0.005mm, providing extremely hign feed straightness without offset.
- The rollers are manufactured from high quality steel (SUJ2) and heat treated to release stress. Roller surfaces are hard chrome plated for maximum wear resistance.
- The computer control with closed-loop feedback assures accuracy of ±0.05mm.
- Multi-step manual length input allows convenient material feed to the die and accurate positioning.
- Feed length can be conveniently set on the control panel.
|
|
|
Model |
width |
A |
Max.Think x Max.width |
Speed |
Feed Pitch Accuracy Length |
Air Pressure |
NR200 |
200 mm |
475 mm |
2.5 x 200 / 3.2 x 160 mm |
125 m/min |
9999.99 mm |
4~5 kg/cm2 |
NR300 |
300 mm |
575 mm |
2.2 x 300 / 3.2 x 180 mm |
125 m/min |
9999.99 mm |
4~5 kg/cm2 |
NR400 |
400 mm |
675 mm |
1.8 x 400 / 3.2 x 200 mm |
125 m/min |
9999.99 mm |
4~5 kg/cm2 |
NR500 |
500 mm |
775 mm |
1.4 x 500 / 3.2 x 220 mm |
100 m/min |
9999.99 mm |
4~5 kg/cm2 |
NR600 |
600 mm |
875 mm |
1.2 x 600 / 3.2 x 280 mm |
100 m/min |
9999.99 mm |
4~5 kg/cm2 |
- All specifications, dimensions and design are subject to change without prior notice.
|
|
|
