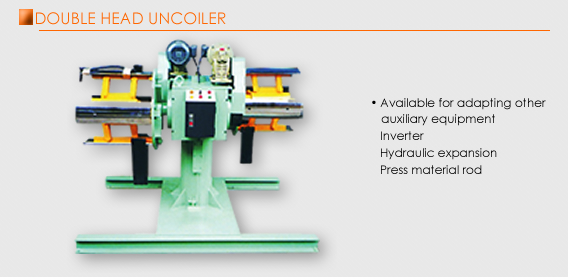

Model	Double head uncoiler with power	Double head uncoiler with power	Double head uncoiler with power	Double head uncoiler with power
Width of material (mm)	300	400	500	600
Thickness of material (mm)	0.5 ~ 1.6	0.5 ~ 1.6	0.5 ~ 1.6	0.5 ~ 1.6
Coil weight (Kg)	800	1500	2000	2000
Uncoil motor (HP)	1 / 2	1	1	1
Uncoil O.D. (mm)	1200	1200	1200	1200
Uncoil I.D. (mm)	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530
The main shaft	70	90	105	105

Model	Double head uncoiler without power	Double head uncoiler without power	Double head uncoiler without power	Double head uncoiler without power
Width of material (mm)	300	400	500	600
Thickness of material (mm)	0.5 ~ 1.6	0.5 ~ 1.6	0.5 ~ 1.6	0.5 ~ 1.6
Coil weigth (Kg)	800	1500	2000	2000
Uncoil O.D. (mm)	1200	1200	1200	1200
Uncoil I.D. (mm)	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530
The main shaft	70	90	105	105

All specifications, dimensions and design are subject to change without prior notice.
