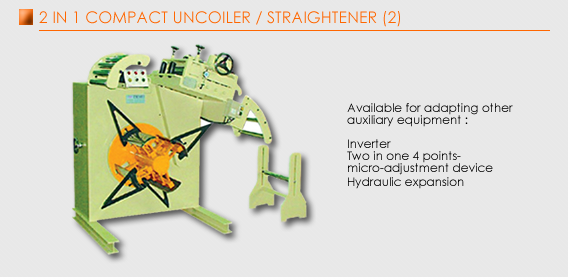

The uncoiler combine with straightener, save the space.
Using the simple electronic box for the easy operation control.
The uncoiler can choose the hydraulic expansion for infeed device, more efficiency.

Model	AGO - 200	AGL - 200	AGO - 300	AGL - 300	AGO - 400	AGL - 400	AGO - 500	AGL - 500	AGO - 600	AGL - 600
Width of material (mm)	150	200	300	400	500	600	500	600	500	600
Thickness of material (mm)	0.5 ~ 1.6	0.5 ~ 3	0.5 ~ 1.6	0.5 ~ 3	0.5 ~ 1.6	0.5 ~ 3	0.5 ~ 1.6	0.5 ~ 3	0.5 ~ 1.6	0.5 ~ 3
Coil weight (Kg)	800	800	800	800	1500	1500	2000	2000	2000	2000
Uncoil motor (HP)	1	1	1	2	1	2	2	2	2	3
Uncoil O.D. (mm)	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200
Uncoil I.D. (mm)	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530	450 ~ 530
Feed roll (mm) Up	60 X 2	70 X 1	60 X 2	70 X 1	60 X 2	70 X 1	60 X 2	70 X 1	60 X 2	70 X 1
Feed roll (mm) Lower	80 X 2	98 X 1	80 X 2	98 X 1	80 X 2	98 X 1	80 X 2	98 X 1	80 X 2	98 X 1
Work roll (mm)	50 X 7	60 X 7	50 X 7	60 X 7	50 X 7	60 X 7	50 X 7	60 X 7	50 X 7	60 X 7
The main shaft	70	70	70	90	90	105	105	105	105	105
Long (mm)	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300
Width (mm)	1000	1000	1000	1000	1200	1200	1350	1350	1400	1400
High (mm)	1750	1750	1750	1750	1750	1750	1750	1750	1750	1750

All specifications, dimensions and design are subject to change without prior notice.
