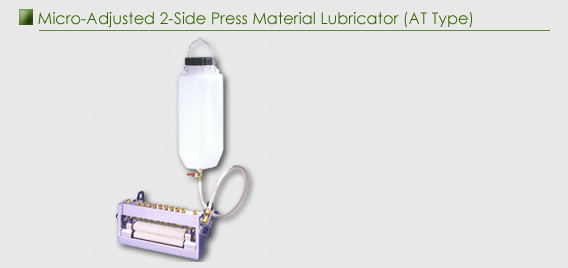

˙Industry Up-Grading Standard Attachments
  • The material lubricator is suitably used for material with double sides oiling at same time to prolong greatly the service life of pressing mold.
  • Aluminum alloy body structure and its surface is processed with anodic treatment and that to be beautiful and durable. A mounting bracket is included which suitable to install on all machines body.
  • Special micro-adjusting oiling design, the oil volume can be controlled easily depending on the work condition. It could save oil consumption.
  • This lubricator adopts high-density wool cotton material with excellent anti-wearing and powerful oil absorbing which is in separate piece model design, easily to maintenance.
  • Filtering mesh is deviced inside the oil barrel then the lubricant can be used again.
  • The option of electrical pump lubricator can combine with press for automatic & man power saving operation.
Model
Max. material width
Thickness
AT - 65
65 m/m
0.10 ~ 6.0 m/m
AT - 80
80 m/m
0.10 ~ 6.0 m/m

AT - 100

100 m/m
0.10 ~ 6.0 m/m

AT - 150

150 m/m
0.10 ~ 6.0 m/m

AT - 200

200 m/m
0.10 ~ 6.0 m/m

AT - 250

250 m/m
0.10 ~ 6.0 m/m

AT - 300

300 m/m
0.10 ~ 6.0 m/m

Model
Max. material width
Thickness

AT - 400

400 m/m
0.10 ~ 6.0 m/m

AT - 500

500 m/m
0.10 ~ 6.0 m/m

AT - 600

600 m/m
0.10 ~ 6.0 m/m

AT - 700

700 m/m
0.10 ~ 6.0 m/m

AT - 800

800 m/m
0.10 ~ 6.0 m/m

AT - 900

900 m/m
0.10 ~ 6.0 m/m
AT - 1000
1000 m/m
0.10 ~ 6.0 m/m

http://www.long-huei.com.tw
E-mail : longhuei@ms81.hinet.net
  • All specifications, dimensions and design are subject to change without prior notice.
