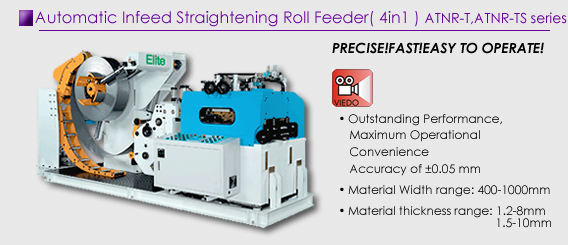

Consistent Accuracy for Extra Thick or Thin Materials	Combined Multi-function in One
Exclusive Automatic Infeed Design
Parallelism Between Rollers 0.005mm. The rollers are manufactured from high quality steel (SUJ2) and heat treated to release stress. Roller surfaces are hard chrome plated for maximum wear resistance. Independent control box for operational convenience. Employs AC servomotor drive for fast motion and increased efficiency. The computer control with closed-loop feedback assures accuracy of ±0.05mm. Multi-step manual length input allows convenient material feed to the die and accurate positioning. Loosening angle is quickly set by simply meeting the cam signal from the press and making material thickness adjustment. Feed length can be conveniently set on the control panel.

MODELS	ATNR - 400T	ATNR - 500T	ATNR - 600T	ATNR - 800T	ATNR - 1000T
Material thickness range	1.2 ~ 8 mm
Material Width range	90 ~ 400 mm	100 ~ 500 mm	100 ~ 600 mm	100 ~ 800 mm	100 ~ 1000 mm
Feed roller	2 sets
Straightening roller numbers	Upper 4 / Lower 3
Outfeed speed	18 m / min
Material coil weight	7000 kg			14000 kg
Inside dia. of material coil	Ø 508 mm
Outside dia. of material coil	Ø 1600 mm
Feed servomotor	AC 7.5 KW			AC 11 KW
Uncoil motor	AC 2.2 KW		AC 3.7 KW	AC 5.5 KW
Uncoil expansion	Hydraulically operated
Working air pressure	5 kg / cm²
Power source required	AC 3 ph
Machine dimensions (LxWxH)	4516 x 2280 x 2250 mm	4516 x 2380 x 2250 mm	4516 x 2480 x 2250 mm	4516 x 2680 x 2250 mm	4516 x 2880 x 2250 mm
Machine weight	5100 kg	5400 kg	5700 kg	6300 kg	7100 kg

MODELS	ATNR - 400TS	ATNR - 500TS	ATNR - 600TS	ATNR - 800TS	ATNR - 1000TS
Material thickness range	1.5 ~ 10 mm
Material Width range	50 ~ 400 mm	50 ~ 500 mm	50 ~ 600 mm	100 ~ 800 mm	100 ~ 1000 mm
Feed roller	2 sets
Straightening roller numbers	Upper 4 / Lower 3
Outfeed speed	18 m / min
Material coil weight	7000 kg			14000 kg
Inside dia. of material coil	Ø 508 mm
Outside dia. of material coil	Ø 1600 mm
Feed servomotor	AC 11 KW			AC 15 KW
Uncoil motor	AC 2.2 KW		AC 3.7 KW	AC 5.5 KW
Uncoil expansion	Hydraulically operated
Working air pressure	5 kg / cm2
Power source required	AC 3 ph
Machine dimensions (LxWxH)	4600 x 2350 x 1700 mm	4600 x 2450 x 1700 mm	4600 x 2550 x 1700 mm	4600 x 2750 x 1700 mm	4600 x 2950 x 1700 mm
Machine weight	4950 kg	5250 kg	5550 kg	6150 kg	6950 kg

All specifications, dimensions and design are subject to change without prior notice.
