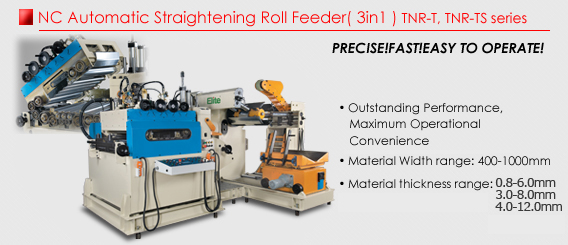

Consistent Accuracy for Extra Thick or Thin Materials	Combined Multi-function in One
Exclusive Automatic Infeed Design	Automatic Guide Infeed
Even when processing extra thick or thin materials, Elite feeders always provide extremely stable feeding performance and high accuracy positioning. For feeding materials of various widths and thicknesses, adjustment is conveniently made by simply changing the feeder to suit the die.

MODELS	TNR - 400T	TNR - 500T	TNR - 600T	TNR - 800T	TNR - 1000T
Material thickness range	0.8 ~ 6.0 mm
Material Width range	50 ~ 400 mm	80 ~ 500 mm	100 ~ 600 mm	100 ~ 800 mm	100 ~ 1000 mm
Feed roller	2 sets
Straightening roller numbers	Upper 4 / Lower 3
Outfeed speed	18 m / min
Material coil weight	6500kg	7500kg	9000kg	10000kg	10000kg
Inside dia. of material coil	Ø510 mm
Outside dia. of material coil	Ø 1600 mm
Feed servomotor	AC 7.0 KW			AC 11 KW
Uncoil motor	AC 2HP	AC 3HP		AC 5HP
Uncoil expansion	Hydraulically operated
Working air pressure	5 kgf / cm²
Power source required	AC 3 ph
Machine dimensions (LxWxH)	4500 x 2300 x 1700 mm	4500 x 2400 x 1700 mm	4500 x 2500 x 1700 mm	4500 x 2700 x 1700 mm	4500 x 2900 x 1700 mm
Machine weight	4150 kg	4850 kg	5350 kg	6050 kg	6950 kg

MODELS	TNR - 400TS	TNR - 500TS	TNR - 600TS	TNR - 800TS	TNR - 1000TS
Material thickness range	3.0 ~ 8.0 mm
Material Width range	50 ~ 400 mm	50 ~ 500 mm	50 ~ 600 mm	100 ~ 800 mm	100 ~ 1000 mm
Feed roller	2 sets
Straightening roller numbers	Upper 4 / Lower 3
Outfeed speed	18 m / min
Material coil weight	7000 kg		9000 kg	10000 kg
Inside dia. of material coil	Ø 510 mm
Outside dia. of material coil	Ø 1600 mm
Feed servomotor	AC 7.0 KW			AC 11 KW
Uncoil motor	AC 2.2 KW		AC 3.7 KW	AC 5.5 KW
Uncoil expansion	Hydraulically operated
Working air pressure	5 kg / cm²
Power source required	AC 3 ph
Machine dimensions (LxWxH)	4600 x 2350 x 1700 mm	4600 x 2450 x 1700 mm	4600 x 2550 x 1700 mm	4600 x 2750 x 1700 mm	4600 x 2950 x 1700 mm
Machine weight	4950 kg	5250 kg	5550 kg	6150 kg	6950 kg

MODELS	TNR - 400TS	TNR - 500TS	TNR - 600TS	TNR - 800TS	TNR - 1000TS
Material thickness range	4.0 ~ 12 mm
Material Width range	50 ~ 400 mm	50 ~ 500 mm	50 ~ 600 mm	100 ~ 800 mm	100 ~ 1000 mm
Feed roller	2 sets
Straightening roller numbers	Upper 4 / Lower 3
Outfeed speed	18 m / min
Material coil weight	7000 kg		9000 kg	10000 kg
Inside dia. of material coil	Ø 510 mm
Outside dia. of material coil	Ø 1600 mm
Feed servomotor	AC 11 KW			AC 15 KW
Uncoil motor	AC 2.2 KW		AC 3.7 KW	AC 5.5 KW
Uncoil expansion	Hydraulically operated
Working air pressure	5 kg / cm²
Power source required	AC 3 ph
Machine dimensions (LxWxH)	4600 x 2350 x 1700 mm	4600 x 2450 x 1700 mm	4600 x 2550 x 1700 mm	4600 x 2750 x 1700 mm	4600 x 2950 x 1700 mm
Machine weight	4950 kg	5250 kg	5550 kg	6150 kg	6950 kg

All specifications, dimensions and design are subject to change without prior notice.
